SC200BG Man And Material Hoist Rack And Pinion For Building Site / Bridges

Name: SC200BG Man And Material Hoist Rack And Pinion For Building Site Bridges
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Passenger and material hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12

Certification : TUV, CCC

Place of Origin : CHINA

MOQ : 1 set

Price : In USD

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 25-30 days

Packaging Details : Export package

Description : SC200 man and material hoist

Application : Construction site, building site, bridges, chimney, plants, etc.

Design : According to European Regulation

Material : Q355B steel

Processing : Processed by CNC machines in tool fixtures

Color : Yellow

Contact Now

Passenger and material hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12

Production and Materials

KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.

Configuration

There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.

Technical Data

Item & Article No.	SC200BG, MP-B11; SC200/200BZ, MP-B12
Payload Capacity	2,000 KG per Cage
Lifting Speed	0–60 m/min.
Max. Lifting Height	450 m
Cage Size (internal)	3.2(Length)1.5(Width)2.35(Height) Meter per Cage
Cage Doors	3 Doors, Entry Door + Exit Door + Side Door
Motor Control	FC (Frequency Control)
Engine Power	3x15 KW per Cage
Gearbox	Helical Gearbox
Safety Device Type	Centrifugal Brake
Power Supply Range	380–500 V, 50 or 60 Hz, 3 Phase
Type of Mast	Square Column 650*650 mm with Bolted Rack
Length Mast Section	1.508 m
Rack Module	8

Product Tags:

man and material hoist

personnel and materials

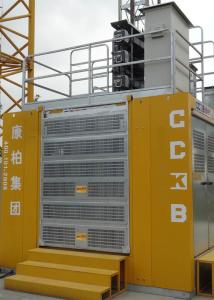

SC200BG Man And Material Hoist Rack And Pinion For Building Site / Bridges Images
