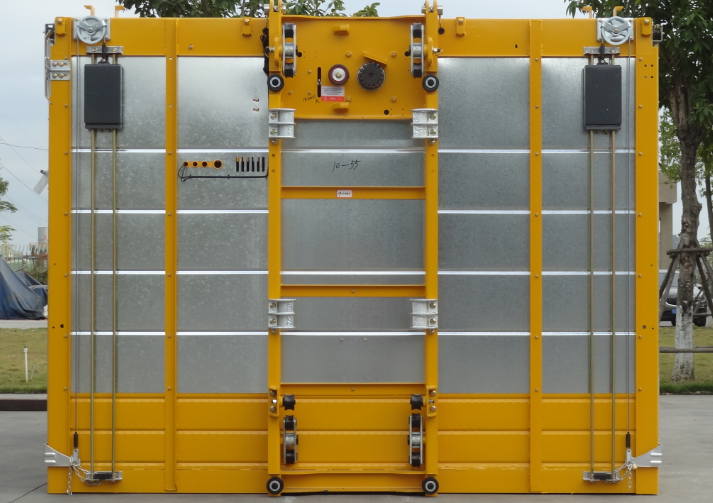

2 Ton Capacity Construction Building Hoist Of Passenger And Material Hoist
Product Advantage:
1. Adopting advanced technology and equipment,SC series construction Building Hoist is novel in design,reasonable in structure, simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2. The SC Building Construction Hoist incorporates famous brand electrical components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding by robots.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The SC Building Construction Hoist is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Standard Model Specification for Construction Hoist:
| Item | SC200/200 |
| Basic parameters | Free standing height(m) | 9 |
| Max.Lifting height(m) | 450 |
| Rated Load(kg) | 2*2000 |
| Motor power(kw) | (2*2)*11 |
| Lifting speed(m/min) | 36 |
| Main cable | 3*20mm2+2(National Standard) |
| Standard section | Mast size(mm) | 650*650*1508 |
| Main limb material(steel tuble) | φ76×4.5/Q345B |
| Cage | cage inner dimensions(m) | 3.2*1.5*2.35 |
Our Company
COMWINNING has been in the field of crane and hoist for more than 20 years, so we are experienced and professional in manufacturing and exporting all kinds of cranes (including Tower Crane, Construction Hoist,Overhead Crane, Gantry Crane, Jib Crane), wire rope electric hoist, electric chain hoist, hook block and crane other spare parts.
Warmly welcome our factory.
FAQ:
Please provide the following details so that we can provide exact price to you:
1- Single cage/Double cage?
2- Project height or Lift Height?
3- With inverter control or DOL?
4- Local Power Supply?
5- Other special requirements.
