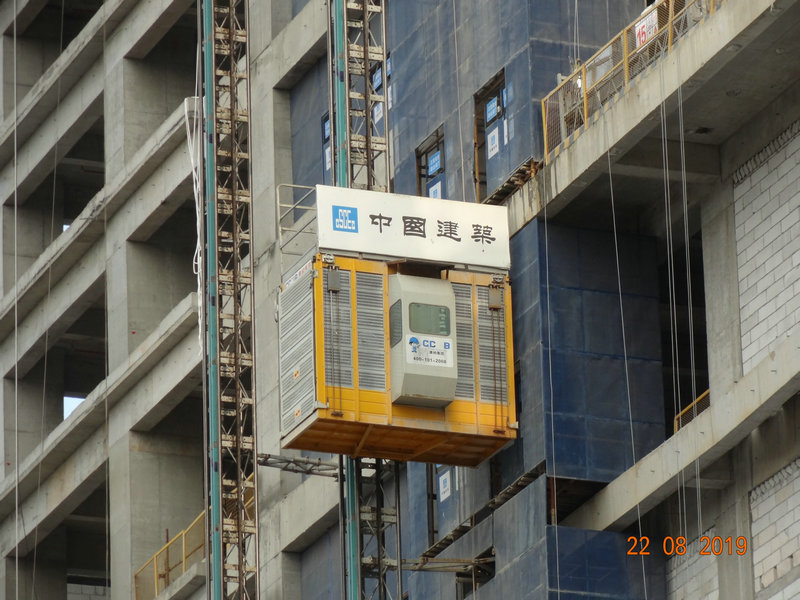

VFD Motor 46 M / Min Building Site Rack And Pinion Hoist

Name: VFD Motor 46 M Min Building Site Rack And Pinion Hoist
Brand: KANGBO
Price: 1 USD

Brand Name : KANGBO

Model Number : Rack and pinion hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18

Certification : TUV

Place of Origin : CHINA

MOQ : 1 set

Price : in USD

Payment Terms : T/T, L/C

Supply Ability : 150 sets per month

Delivery Time : 250-30 days

Packaging Details : export package

Name : Rack And Pinion Hoist

Application : Transportation of man and material at building site

Material : Q345B cool roll steel plate

Processing : Cut by Laser, Processed by CNC machines in tool fixtures

Motor : VFD

Control : VFD Control

Contact Now

VFD Control 46 M/Min Rack And Pinion Hoist

Rack And Pinion Hoist Introduction

1. This product has no counter weight, dismantling easily and working safely;

2. The transmission system adopted three drive motors and three sets of reduction gears;

3. The mast sections of construction elevator are painted for four times. Also galvanized mast sections are available for customers;

4. The start electricity is smaller than the working electricity;

5. Quick-wear parts are free to give to customers and one-year warranty for the main mechanism.

Rack And Pinion Hoist Production and Materials

KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q345 high strength steel.

The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.

Rack And Pinion Hoist Technical Data

Item & Article No.	SC320(BZ) KP-B17, SC320/320(BZ) KP-B18
Payload capacity	3,200 kg per cage
Lifting speed	0–46 m/min.
Max. lifting height	450 m
Cage width (internal)	1.5 m
Cage length (internal)	3.2 m
Cage height (internal)	2.35 m
Motor control	FC control
Engine power	3x15 kw per cage
Gearbox	Helical reducer
Safety device type	centrifugal brake
Power supply range	380–500 V, 50 or 60 Hz, 3 phase
Mast section	square column 6506501508 mm with bolted rack
Rack module	8

VFD Motor 46 M / Min Building Site Rack And Pinion Hoist
