High Strength Structure 2000Kg Passenger And Material Hoist
Passenger And Material Hoist Application
We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 5000kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 400m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.
Passenger And Material Hoist Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control motors make the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
Passenger And Material Hoist Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
Passenger And Material Hoist Parameters
| Technical Data | Passenger And Material Hoist SC200BG KP-B09B10 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/450 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. |
Product Tags:
|
|

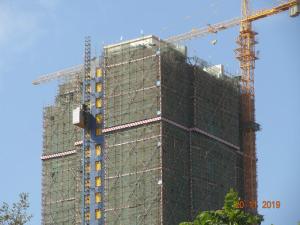

Building Site 250m 2000Kg Passenger And Material Hoist Images
|
